Automatic Fluid Sampler

The field
sampler,
reimagined.

SYP collects up to 58 precisely timestamped water samples over a 12-month deployment — unattended, in the most demanding environments on earth.

"Sample smarter for richer data."

Capacity58 vials
Battery life12+ months
Sample modes4
ConfigurationWi-Fi app
Electronics range−10 °C to 50 °C
Trusted by researchers worldwide
25
Active deployments
6 continents · 9+ countries
6+
Years of
field development
Science
Advances
Published in
peer-reviewed literature
9+
Universities & institutions
Including a global top-10 & multiple
top-100 ranked universities
The problem we solved

Field sampling shouldn't
require a field trip
every two weeks.

01 — Remote access

The site is hours away

Cave dripwaters, mountain springs, remote catchments — the most scientifically interesting sites are the hardest to reach. Manual sampling regimes quickly become logistically impossible, or simply too dangerous.

02 — Data continuity

You miss the events that matter

Storm events, seasonal transitions, episodic flow pulses — the moments that answer your research questions rarely happen on a convenient schedule. If you're not there, you lose the sample.

03 — No off-the-shelf solution

Nothing was built for this

Existing autosamplers were designed for wastewater treatment plants and industrial monitoring — heavy, mains-powered, and oblivious to the realities of field science. SYP was designed from scratch for researchers who go to hard places.

Where SYP has been.

SYP autosampler deployed in Grutas Tzabnah, Yucatán, for Classic Maya drought reconstruction — University of Cambridge
Grutas Tzabnah · Yucatán · Science Advances 2025

Reconstructing Classic Maya droughts

David Hodell, Ola Kwiecen, Daniel James and co-authors deployed SYP in Grutas Tzabnah to collect weekly 15 ml drip-water samples over a full year — providing data for a speleothem reconstruction of drought events during the Classic Maya period, published in Science Advances.

James et al. · doi:10.1126/sciadv.adw7661 · University of Cambridge & co-institutions
Dr Yuval Burstyn deploying SYP Mark III in Crystal Cave, Sierra Nevada, California — UC Davis
Crystal Cave · Sierra Nevada, California · UC Davis

150 m underground, beneath a sequoia forest

Dr Yuval Burstyn deployed SYP in Crystal Cave — 150 metres beneath a giant sequoia forest in the Sierra Nevadas — where it autonomously collected 31 samples from atmospheric river events over six months. Data presented at the Climate Change and the Karst Record conference, Cape Town 2025.

PI: Isabel Montanez · Deployment: Dr Yuval Burstyn · UC Davis
SYP Mark III installed in Garra de Jaguar cave, Yucatán, Mexico — University of Florida and UNAM
Garra de Jaguar Cave · Yucatán, Mexico · UF & UNAM

SYP MkIII enters the Yucatán

Oana Dumitru (University of Florida) and Fernanda Lases-Hernández (UNAM) installed a MkIII SYP — complete with rain jacket — among the stalactites of a Yucatán cave, gathering autonomous samples through the season.

Oana Dumitru · University of Florida & Fernanda Lases-Hernández · UNAM
Kesego Letshele installing SYP in Oregon Caves National Monument — UC Davis and Oregon State
Oregon Caves National Monument · UC Davis & Oregon State

Sampling without disturbing the bats

UC Davis PhD student Kesego Letshele installed SYP in Oregon Caves National Monument to quietly collect drip water through winter — without disturbing the hibernating bat population. Exactly the kind of long-term autonomous deployment that manual sampling makes impossible.

Kesego Letshele · UC Davis · PI: Kathleen Wendt · Oregon State
Science Advances · Vol.11 No.33 · 13 Aug 2025
"Drip water was collected using a SYP (Waikato Scientific Instruments, waikatoscientific.com) autosampler, beneath an active drip... The SYP collected the first 15 ml of drip water to accumulate in each 7-day interval in 15-ml sealed polypropylene sampling vials."
James et al. · Classic Maya response to multiyear seasonal droughts · doi:10.1126/sciadv.adw7661
Peer-reviewed citation · Methods section

Named in Science Advances

SYP is cited by name — with URL — in the methods section of a peer-reviewed paper in Science Advances. The instrument's data contributed to a major reconstruction of Classic Maya drought response, one of the most significant palaeoclimate findings of 2025.

1 / 5
Firmware UI + Data Portal

See the software
before you deploy.

Every SYP ships with two interfaces: a firmware UI served from the sampler itself for field configuration and control, and the SYP Portal — a cloud platform for everything that happens after. Both run in your browser, and both have live demos you can explore right now.

192.168.4.1

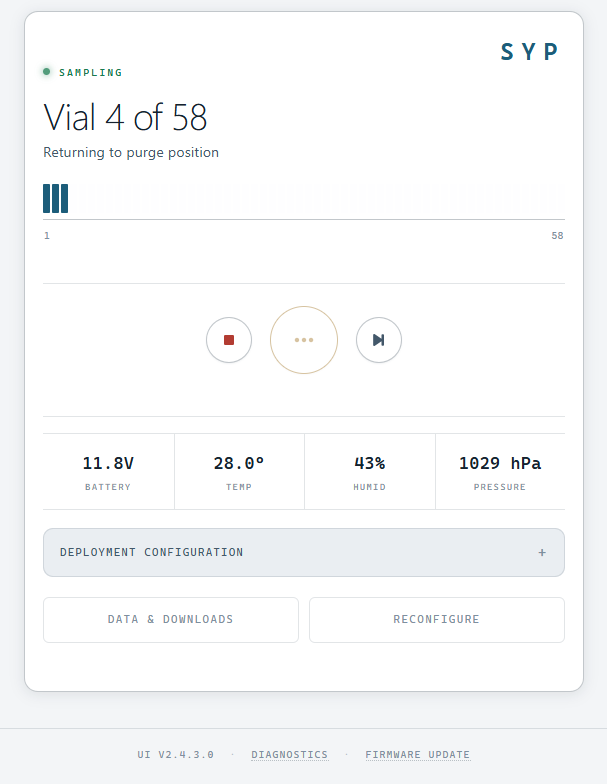

SYP firmware interface mid-deployment, sampling vial 4 of 58 with live battery, temperature, humidity, and pressure readings
Firmware UI · On the device
Field control, served from the sampler

Connect to the unit's own Wi-Fi and the full interface loads in your browser: arm a deployment with the guided wizard, watch vials fill in real time, and pull data on the spot. No app to install — the sampler is the server.

Launch the firmware demo
SYP Portal · Cloud
Your samplers, on a map

Track deployments across sites, browse sequence completeness at a glance, upload run data, monitor unit health, and book service — one home for every unit you own.

Explore the portal demo
app.sypsampler.com

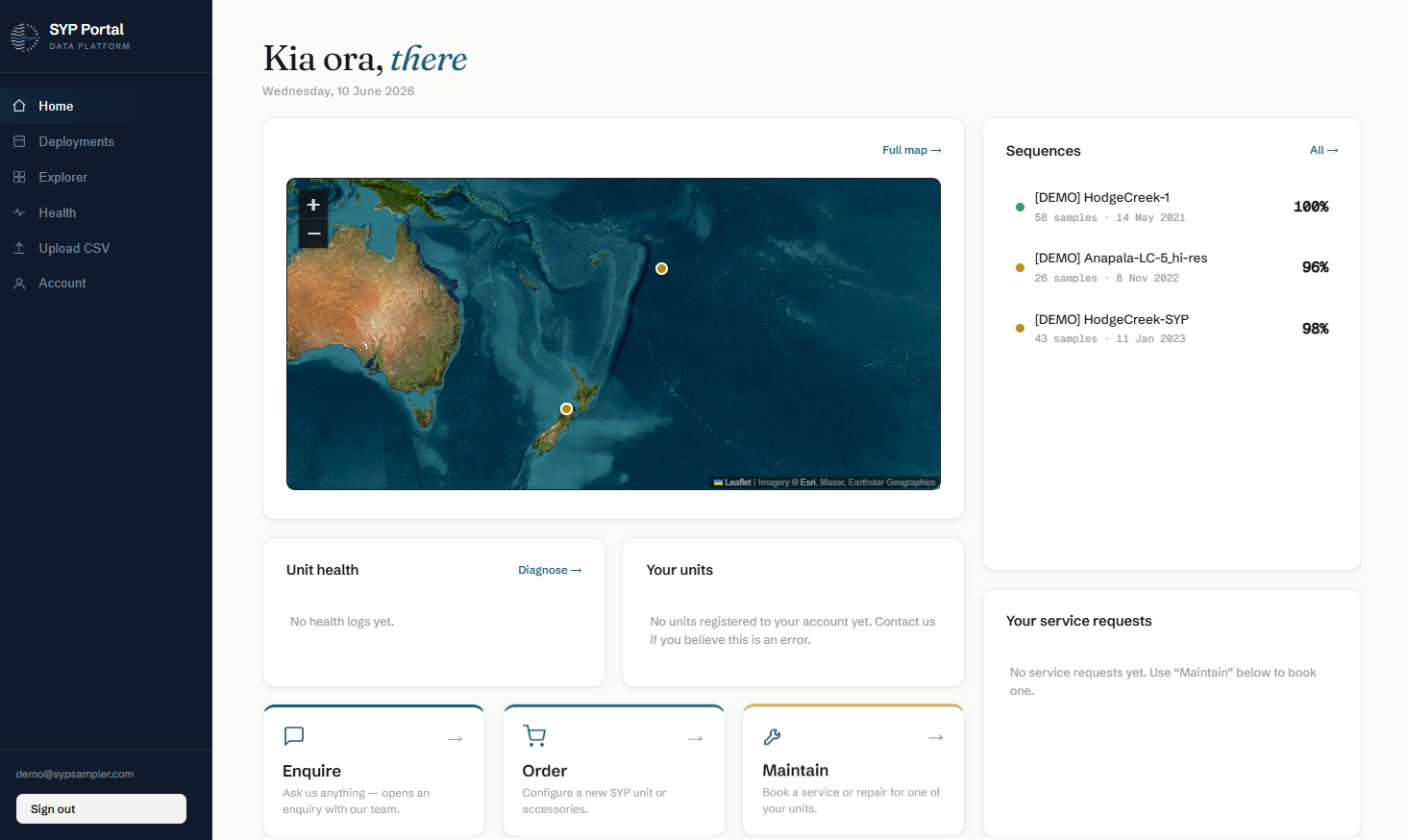

SYP Portal dashboard showing a deployment map, sequence completeness, unit health, and service requests

No app to install. No hardware needed. Both demos run a full simulated deployment.

How it works

Configure once.
Deploy anywhere.

Gravity
Pump
External

Gravity mode

Designed for collecting fluid drips from a height — cave dripwaters, rain gauges, spring seeps. Water flows into the machine by gravity alone; no pump means no mechanical contamination risk and simpler maintenance.

Supports timed, delayed-start, and continuous flow-proportional sampling. Full vial detection ensures consistent sample volume and logs fill time so you can infer flow rate from timestamps.

Cave hydrology Speleothem research Rain gauges Spring seeps

Pump mode

A peristaltic pump draws water from a reservoir or surface water body into vials at precisely user-defined intervals. Ideal for sites where gravity flow is insufficient — cramped setups, low hydraulic head, or active groundwater monitoring.

The pump runs for a pre-determined duration per sample, with full vial detection to validate volume. Supports timed and delayed start modes.

Groundwater monitoring Surface water Stormwater Wetlands

External trigger mode

SYP responds passively to a 12V pulse from an external datalogger or controller — perfect for flow-proportional sampling setups where sampling decisions are made by a third-party sensor network. SYP simply executes the sample on command.

Logger integration Flow-proportional Event sampling

Technical specifications

Sample capacity58 × 15 ml polypropylene vials with bungs
Battery life>12 months at 1 sample/week
Battery type8 Ah rechargeable LiPo (removable)
Sampling interval1 to 65,000 hours (user-defined)
Sample methodGravity or peristaltic pump
Trigger modesTimed, delayed start, continuous, external
ConnectivityWi-Fi (device-hosted access point)
Electronics temp.−10 °C to +50 °CNote: vials/tubing may burst if frozen while filled with water
ConstructionWater-resistant acrylic case, stainless fasteners, 3D-sintered parts, waterproof stepper motor, conformal-coated PCB
Vial stoppersSelf-healing THERMOLAST® K TF5FMA
Carry bag180 g vinyl, padded straps (Access Gear)
Onboard sensorsTemperature, humidity, air pressure
Data exportCSV via Wi-Fi browser interface
Firmware updatesOTA via Wi-Fi (.SYP file)
Warranty18 months from purchase
Packages

Ready to deploy,
out of the box.

All packages are priced in NZD excl. GST. We recommend the Expedition package for most deployments — it includes everything you need from the car to the field site.

Package 01
Base
From NZD $14,990 + GST
Loading rates...
  • SYP Mark III fluid sampler
  • Peristaltic pump module
  • 58 × sample vials with bungs
  • 4 m Tygon inlet tubing
  • Rechargeable LiPo battery & charger
  • Wi-Fi configuration interface
  • User manual & quick-start guide
  • 18-month warranty
Configure & quote →

Custom configurations available. Contact us to discuss your deployment requirements.

Get in touch

Ready to leave the
sampling to SYP?

Tell us about your site and we'll recommend the right configuration and get you a quote within 48 hours.
